WAAVE Checkout integration Custom install

Version 1 - last updated 11-23-2020

Javascript SDK

OVERVIEW

• To use your own checkout button, invoke the WAAVE Checkout Dialog with a call to create a transaction.


• Using your API key, pass on the vendor id supplying the products in the cart (venue-id), the total amount to charge, and your cart’s URL.

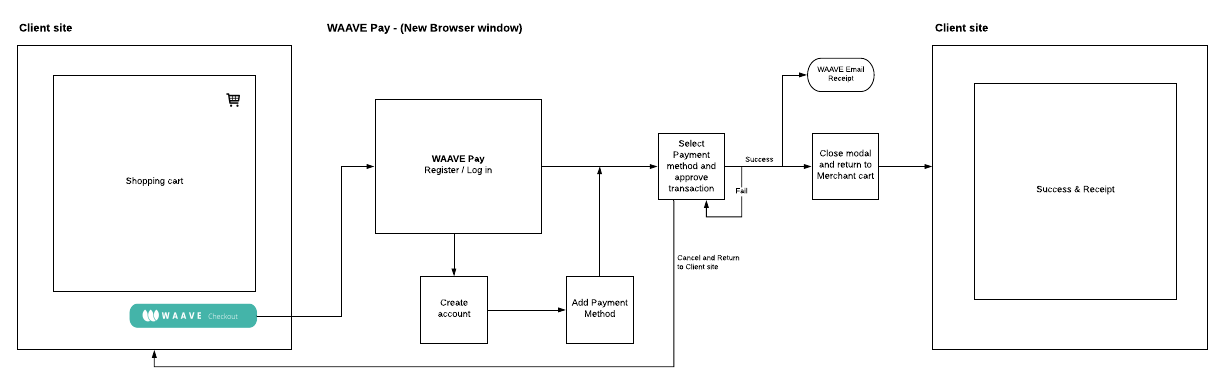

• When the User clicks on the WAAVE Checkout button, a new browser window will guide them through WAAVE login/registration, payment method selection, and present a transaction summary for their approval.


• The User accepts and pays. WAAVE site will display confirmation, send Customer a receipt over email, pass on success message to the Client site, and redirect the user back to a Client site where Client can display their own transaction success summary.

1. Requirements

     a. Access Key

     b. Venue ID

2. Javascript SDK

     a. Javascript SDK URLs:

          i. Test: https://staging-pg.getwaave.co/js/waave-checkout-sdk.js

          ii. Prod: https://pg.getwaave.co/js/waave-checkout-sdk.js

     b. Test Payment Method:

         Use the payment method below.

         Please, keep transactions under $1.

3. HTML Sample

<div class="waavepay-checkout"

             data-access-key="670ce9a7160ee0ba5411b6e9d398adb6"

             data-venue-id="79021"

             data-reference-id="1"

             data-amount="1"

             data-currency="USD"

             data-return-url="http://localhost/"

             data-cancel-url="https://localhost/"

             data-env="test">

         </div>

4. Parameters

5. Redirect to Client site:

Query string sample: ?success=1&transaction=b701cf5735e0d60e26dc42e1d8a742cb

TRANSACTION API

   1. Base URL

• Test: https://staging-pg.getwaave.co

• “X-Api-Key” : The Access Key
• “X-Api-Signature”: A signature used to verify the request was sent by the account holder.

How to get it:

• Concatenate the API Secret Key, the request URL and the json encoded of the request body (if the request body is empty, use an empty string instead)
• Hash the string above with SHA-256.
• Example for GET/CANCEL transaction - the request body is empty: (with PHP)

3. Get Transaction info

    a. Endpoint:

        GET    /api/transaction/{transactionId}

    b. Result sample:

• Success: http code 200

{

    "id": "308199ae0eacc31c1c04f84a866ae522",

    "venue_id": 79021,

    "status": "completed",

    "amount": 20.52,

    "currency": "USD",

    "reference_id": "3215",

    "return_url": "http://widget-demo.getwaave.co/",

    "cancel_url": "http://widget-demo.getwaave.co/",

    "created_at": "2020-10-06 06:10:12"

}

• Error: http code 404


  {

      "error": true,

      "message": "Transaction not found!"

  }

4. Cancel Transaction:

    a. Endpoint:

        PUT    /api/transaction/{transactionId}/cancel

    b. Result sample:

• Success: http code 200
   {

      "success": true,

      "id": "308199ae0eacc31c1c04f84a866ae522",

      "status": "canceled"

  }

• Error: http code 400


  {

      "error": true,

      "message": "Transaction has been canceled!"

  }
